Audit Journal Monitoring with QMessage Monitor



Audit Journal Monitoring

This is a step-by-step guide to implementing audit journal monitoring within QMessage Monitor. This feature allows you to monitor the QAUDJRN security journal in real time. When you configure the monitor to monitor the message queue MMAUDJRN in the QMessage Monitor installed library, it creates the MMAUDJRN queue automatically; however, system auditing needs to be set up manually, if required. The entries are turned into messages that can be seen in the message file MMAUDJRN. The command MMAJFMNT can be used to set up filters to limit the number of audit journal entries converted.

Create Journal Receiver

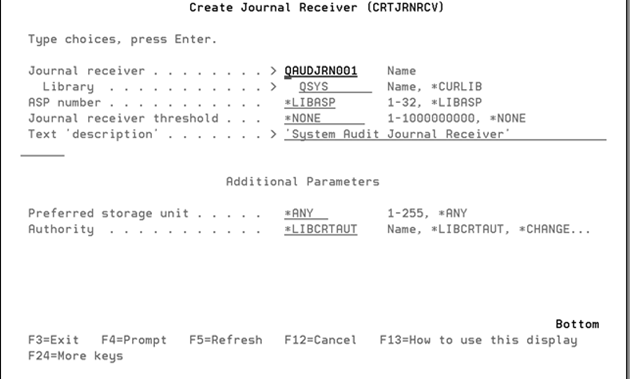

The first thing to do is manually set up the level of auditing that's required. In this example, we'll create a journal receiver called QAUDJRN001 in library QSYS:

Create Journal

We now have to create the journal. In this example, we'll create a journal called QAUDJRN in library QSYS:

Set Up Audit Control

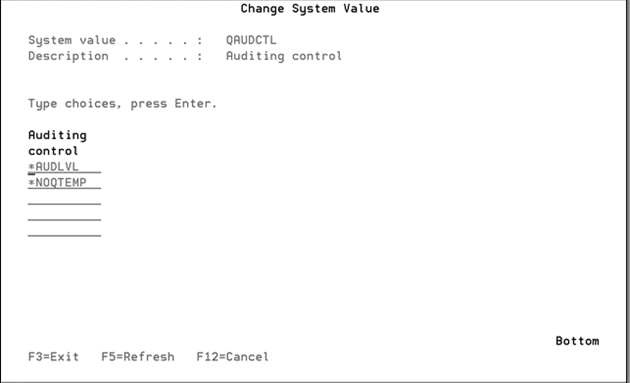

We now have to set up the audit control by amending the value in system value QAUDCTL. This system value contains the on and off switches for object and user-level auditing.

In this example, we'll set the value to *AUDLVL and *NOQTEMP:

Review the System Value QUADLVL section below for further information.

Set Up Auditing Level

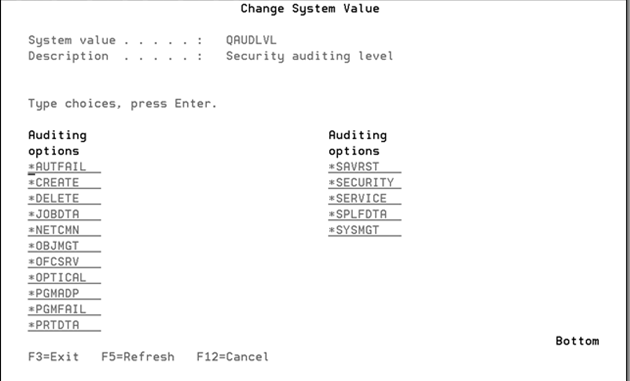

We now have to set up the auditing level by amending the value in system value QAUDLVL. This value controls the level of auditing on the system. In this example, we'll set the value to all those available:

We have now started auditing for all possible options on the system.

We now have to set up QMessage Monitor to receive the updates.

Review the System Value QUADLVL section below for further information.

Defining Audit Journal Filters

As the system can generate a large number of entries during certain operations, the MMAJFMNT program allows you to specify an initial filter. You can limit the types of records that are converted using this program. You can enter a combination of an E to exclude journal entries, or an I to include entries, together with the severity field that's used to select record types within the class. Audit records are converted to messages, which can be seen in the message file MMAUDJRN. Use the WRKMSGF to look at the messages and their severities.

For an Include Record, records are selected if their severity is greater than or equal to the entered value. For an Exclude Record, records are excluded if their severity is less than the entered value.

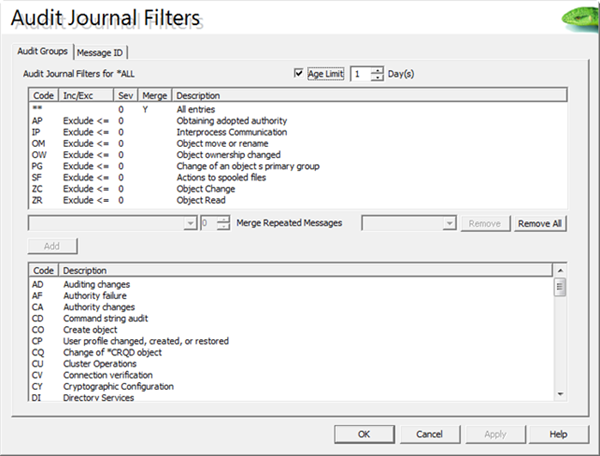

In the following example, a default filter for all systems has been created. The top section shows a number of excluded codes and the bottom section lists all the included codes. Additional detailed filters can be applied at a Message ID level (second tab), and also at a system level.

Defining the MMAUDJRN Message Queue

If you configure the MMAUDJRN message queue in the QMessage Monitor installed library, then the monitor will convert entries from the audit journal to messages in this queue. You can use the MMAJFMNT command to set up an initial filter (as previously mentioned) to reduce the number of entries converted; otherwise the number of messages generated can be very great.

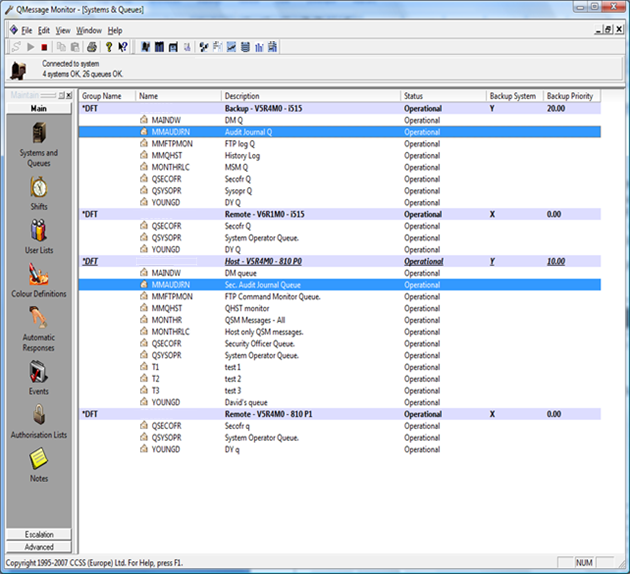

The following screen shows the queue defined and operational on two systems:

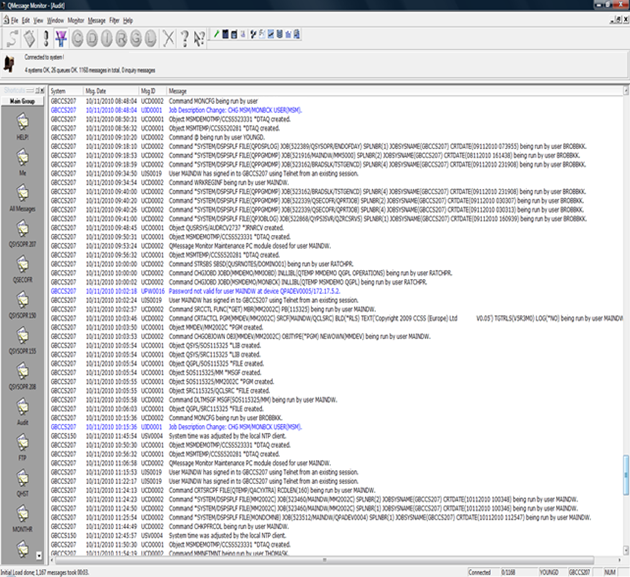

The following screen shows the queue with some example messages:

Audit Journal Filters

System Value: QAUDLVL

Security Auditing Level Options

This is a list of the security auditing level options for the system value QAUDLVL. They're described in detail in the following sections.

*AUTFAIL

*CREATE

*DELETE

*JOBDTA

*NETCMN

*OBJMGT

*OFCSRV

*OPTICAL

*PGMADP

*PGMFAIL

*PRTDTA

*SAVRST

*SECURITY

*SERVICE

*SPLFDTA

*SYSMGT

QAUDLVL - Controls the level of action auditing on the system.

If the QAUDLVL system value contains the value *AUDLVL2, then the values in the QAUDLVL2 system value will also be used. If the QAUDLVL system value does not contain the value *AUDLVL2, then the values in the QAUDLVL2 system value will be ignored. You must have *AUDIT special authority to change this system value. A change to this system value takes effect immediately for all jobs running on the system. The shipped value is *NONE.

The auditing options are described in the following sections.

*NONE

No security action auditing will occur on the system. This is the shipped value.

*AUDLVL2

Both QAUDLVL and QAUDLVL2 system values will be used to determine the security actions to be audited.

Note:

• If you wish to use the QAUDLVL2 system value exclusively, set the QAUDLVL system value to *AUDLVL2 and add your auditing values to the QAUDLVL2 system value.
• If you wish to use both system values, set your values in the QAUDLVL system value along with the *AUDLVL2 value, then add any additional values to the QAUDLVL2 system value.

*AUTFAIL

Authorization failures are audited. The following are some examples:

• All access failures (sign-on, authorization, job submission)
• Incorrect password or user ID entered from a device

*CREATE

All object creations are audited. The following are some examples. Note: Objects created in library QTEMP are not audited.

• Newly created objects
• Objects created to replace an existing object

*DELETE

All deletions of external objects on the system are audited. Note: Objects deleted from library QTEMP are not audited.

*JOBDTA

Actions that affect a job are audited. The following are some examples:

• Job start and stop data
• Hold, release, stop, continue, change, disconnect, end, end abnormal, PSR-attached to prestart job entries
• Changing a thread's active user profile or group profiles

*NETBAS

Network base functions are audited. The following are some examples:

• IP rules actions
• Sockets connections
• APPN Directory search filter
• APPN end point filter

*NETCLU

Cluster or cluster resource group operations are audited. The following are some examples:

• Add, create, and delete
• Distribution
• End
• Fail over
• List information
• Removal
• Start
• Switch
• Update attributes

*NETCMN

Networking and communications functions are audited. The following are some examples:

• Network base functions (See *NETBAS)
• Cluster or cluster resource group operations (See *NETCLU)
• Network failures (See *NETFAIL)
• Sockets functions (See *NETSCK)

Note:

*NETCMN is composed of several values to allow you to better customize your auditing. If you specify all of the values, you will get the same auditing as if you specified *NETCMN. The following values make up *NETCMN:

• *NETBAS
• *NETCLU
• *NETFAIL
• *NETSCK

*NETFAIL

Network failures are audited. The following are some examples:

• Socket port not available

*NETSCK

Sockets tasks are audited. The following are some examples:

• Accept
• Connect
• DHCP address assigned
• DHCP address not assigned
• Filtered mail
• Reject mail

*OBJMGT

Generic object tasks are audited. The following are some examples:

• Moves of objects
• Renames of objects

*OFCSRV

OfficeVision for AS/400 are audited. The following are some examples:

• Changes to the system distribution directory
• Tasks involving electronic mail

*OPTICAL

All optical functions are audited. The following are some examples:

• Add or remove optical cartridge
• Change the authorization list used to secure an optical volume
• Open optical file or directory
• Create or delete optical directory
• Change or retrieve optical directory attributes
• Copy, move, or rename optical file
• Copy optical directory
• Back up optical volume
• Initialize or rename optical volume
• Convert backup optical volume to a primary volume
• Save or release held optical file
• Absolute read of an optical volume

*PGMADP

Adopting authority from a program owner is audited.

*PGMFAIL

Program failures are audited. The following are some examples:

• Blocked instruction
• Validation value failure
• Domain violation

*PRTDTA

Printing functions are audited. The following are some examples:

• Printing a spooled file
• Printing with parameter SPOOL(*NO)

*SAVRST

Save and restore information is audited. The following are some examples:

• When programs that adopt their owner's user profile are restored
• When job descriptions that contain user names are restored
• When ownership and authority information changes for objects that are restored
• When the authority for user profiles is restored
• When a system state program is restored
• When a system command is restored
• When an object is restored

*SECCFG

Security configuration is audited. The following are some examples:

• Create, change, delete, and restore operations of user profiles
• Changes to programs (CHGPGM) that now adopt the owner's profile
• Changes to system values, environment variables, and network attributes
• Changes to subsystem routing
• When the QSECOFR password is reset to the shipped value from DST
• When the password for the service tools security officer user ID is requested to be defaulted.
• Changes to the auditing attribute of an object

*SECDIRSRV

Changes or updates when doing directory service functions are audited. The following are some examples:

• Audit change
• Successful bind
• Authority change
• Password change
• Ownership change
• Successful unbind

*SECIPC

Changes to interprocess communications are audited. The following are some examples:

• Ownership or authority of an IPC object changed
• Create, delete, or get of an IPC object
• Shared memory attach

*SECNAS

Network authentication service actions are audited. The following are some examples:

• Service ticket valid
• Service principals do not match
• Client principals do not match
• Ticket IP address mismatch
• Decryption of the ticket failed
• Decryption of the authenticator failed
• Realm is not within client and local realms
• Ticket is a replay attempt
• Ticket not yet valid
• Remote or local IP address mismatch
• Decrypt of KRB_AP_PRIV or KRB_AP_SAFE checksum error
• KRB_AP_PRIV or KRB_AP_SAFE - timestamp error, replay error, sequence order error
• GSS accept - expired credentials, checksum error, channel bindings
• GSS unwrap or GSS verify - expired context, decrypt/decode, checksum error, sequence error

*SECRUN

Security run time functions are audited. The following are some examples:

• Changes to object ownership
• Changes to authorization list or object authority
• Changes to the primary group of an object

*SECSCKD

Socket descriptors are audited. The following are some examples:

• A socket descriptor was given to another job
• Receive descriptor
• Unable to use descriptor

*SECURITY

All security-related functions are audited.

• Security configuration (See *SECCFG)
• Changes or updates when doing directory service functions (See *SECDIRSRV)
• Changes to interprocess communications (See *SECIPC)
• Network authentication service actions (See *SECNAS)
• Security run time functions (See *SECRUN)
• Socket descriptor (See *SECSCKD)
• Use of verification functions (See *SECVFY)
• Changes to validation list objects (See *SECVLDL)

Note: *SECURITY is composed of several values to allow you to better customize your auditing. If you specify all of the values, you will get the same auditing as if you specified *SECURITY. The following values make up *SECURITY.

• *SECCFG
• *SECDIRSRV
• *SECIPC
• *SECNAS
• *SECRUN
• *SECSCKD
• *SECVFY
• *SECVLDL

*SECVFY

Use of verification functions are audited. The following are some examples:

• A target user profile was changed during a pass-through session
• A profile handle was generated
• All profile tokens were invalidated
• Maximum number of profile tokens has been generated
• A profile token has been generated
• All profile tokens for a user have been removed
• User profile authenticated
• An office user started or ended work on behalf of another user

*SECVLDL

Changes to validation list objects are audited. The following are some examples:

• Add, change, and remove of a validation list entry
• Find of a validation list entry
• Successful and unsuccessful verify of a validation list entry

*SERVICE

For a list of all the service commands and API calls that are audited, see the OS/400 Security Reference publication.

*SPLFDTA

Spooled file functions are audited. The following are some examples:

• Create, delete, display, copy, hold, and release a spooled file
• Get data from a spooled file (QSPGETSP)
• Change spooled file attributes (CHGSPLFA command)

*SYSMGT

System management tasks are audited. The following are some examples:

• Hierarchical file system registration
• Changes for Operational Assistant functions
• Changes to the system reply list
• Changes to the DRDA relational database directory
• Network file operations
