Using Data from Robot Monitor to Create Charts



You can create charts in Microsoft Office Excel using the data from Robot Monitor. Export the required data to a CSV file and then import it into an Excel spreadsheet. Then, select the data you're interested in and create the charts as required.

To export Robot Monitor data to a CSV file:

1. In Robot Monitor, navigate to the view for which you would like to download data.
2. Select File from the top menu.

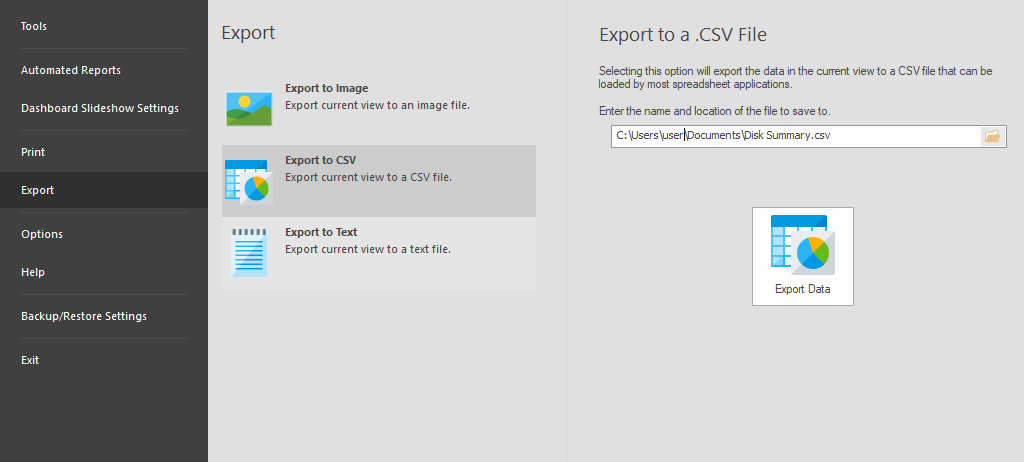

3. Select Option from the left navigation menu to display the Export screen.
4. Click the Export to CSV icon.



5. Verify the location and name of the outputted CSV file. NOTE: The system will default the location to your Documents folder and the name of the file to the 'system\view name.csv'.
6. Click the Export Data button to export. You can then open the downloaded CSV file in Excel and work with/chart the data as necessary.
