Using the EZSCAN Command



Before You Begin

Easy View allows you to define and save a scan definition so you can reuse it. The Run Scan Definition (EZSCAN) command uses this saved scan definition to scan and replace from a command line or in batch. This procedure describes how to create a scan definition and use the EZSCAN command.

Creating a Scan Definition

Before you can use the EZSCAN command, you must define and save the scan definition in a journal group. Do the following:

1. Add the EZVIEW library to your library list using the following command:

   ADDLIBLE EZVIEW

2. Enter the following command to display the Work with Journal Groups panel:

   EZJRN

3. Press F6, Add Group, to define a new group. Enter a name and description for the group in the Add Group window and press Enter. The new group name displays on the Work with Journal Groups panel.

4. Enter option 1, Work with files, next to the new group name to display the Work with Files in Group panel. Press F6, Add File, to add a file to the group. Enter the name of the file and the library where it is found in the Add file to Group window. The Work with Files in Group panel displays again with the file name.

5. Enter option 6, Edit Scan, for file, next to the file. The Work with Search Criteria in File panel displays.

6. Press function key 6, Add Search. The Add View window displays allowing you to enter a name and description for the new search. Press Enter to display the Maintain Search Criterion panel.

7. Enter your scan/replace criteria. When you’ve finished entering your scan/replace criteria, press F8, Create/Change Search. This saves your scan definition; it displays on the Work with Search Criteria in File.

   You now can use the saved scan definition in the EZSCAN command.

   Note: You can create and save as many scan definitions as necessary, making them available to be reused as needed.

Running a Scan Definition

To run your scan definition quickly, enter the EZSCAN command on a command line, in a Robot Schedule job, or a CL program. Enter the command as follows:

EZSCAN FILEGROUP(group_name) FILE(library/filename) SCNDFN(scan_definition_name)

where:

group_name is the name of the journal group where the scan definition is saved
library/filename is the name of the file you want to scan and the library where it is found
scan_definition_name is the name of the saved scan definition

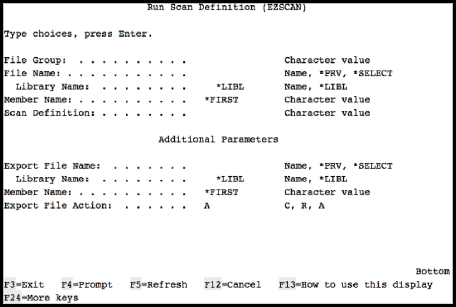

You can also export the results of a scan to a new or existing file. Enter EZSCAN in a command line and press F4 to display the Run Scan Definition (EZSCAN) panel. Press F10 to display additional parameters.

Enter the file, library, and member information. Then, enter an option for the file action. The records that meet the scan criteria will be used to:

C Create a new file containing the selected records.
R Replace a record in an existing file. This option clears the existing file of all records
A Add this record to an existing file. Adds records from scan results to existing files.

Modifying the Scan Definition

You can modify a scan definition at any time.

1. Enter the following command to display the Work with Journal Groups panel:

   EZJRN

2. Enter option 1, Work with Files, in the Opt column next to the group that contains the scan definition you want to change. The Work with Files in Group panel displays listing the files that have been added to the group.

3. Locate the file whose scan definition you want to modify. Enter option 6, Edit Scan for file, next to the file.

4. The Work with Search Criteria in File panel displays with a list of all scan definitions that have been saved. Enter option 2, Change Search Definition, next to the scan definition you want to modify.

5. The Maintain Search Criterion panel displays. Modify the scan as needed and press F8, Create/Change Search, to save your changes.
